A Step-by-Step Look, From Molding Sand to Finished Product

We walk past them every day—on roads, sidewalks, and parking lots. But behind a seemingly simple cast iron manhole cover lies a complete production process. This article takes you through each stage, from raw materials to final inspection, and highlights a few practical points worth considering when sourcing manhole covers for engineering projects.

1. Overview: What Does the Process Involve?

Producing a cast iron manhole cover is not just about “pouring molten iron into a mold.” It involves multiple steps—mold preparation, sand molding, melting, pouring, cooling, shakeout, cleaning, and surface finishing. Each stage affects the quality of the final product.

For those involved in long-term infrastructure projects, what matters is not only how the cover looks, but whether each step has been carried out properly.

Yantai Jinjiang Building Materials Co., Ltd. has been supplying manhole covers for over 15 years. Our approach is to break down project requirements first—clarify dimensions, assess the installation environment and load class—and then propose the right product. In our experience, it is these upfront details that determine whether the cover performs well on site.

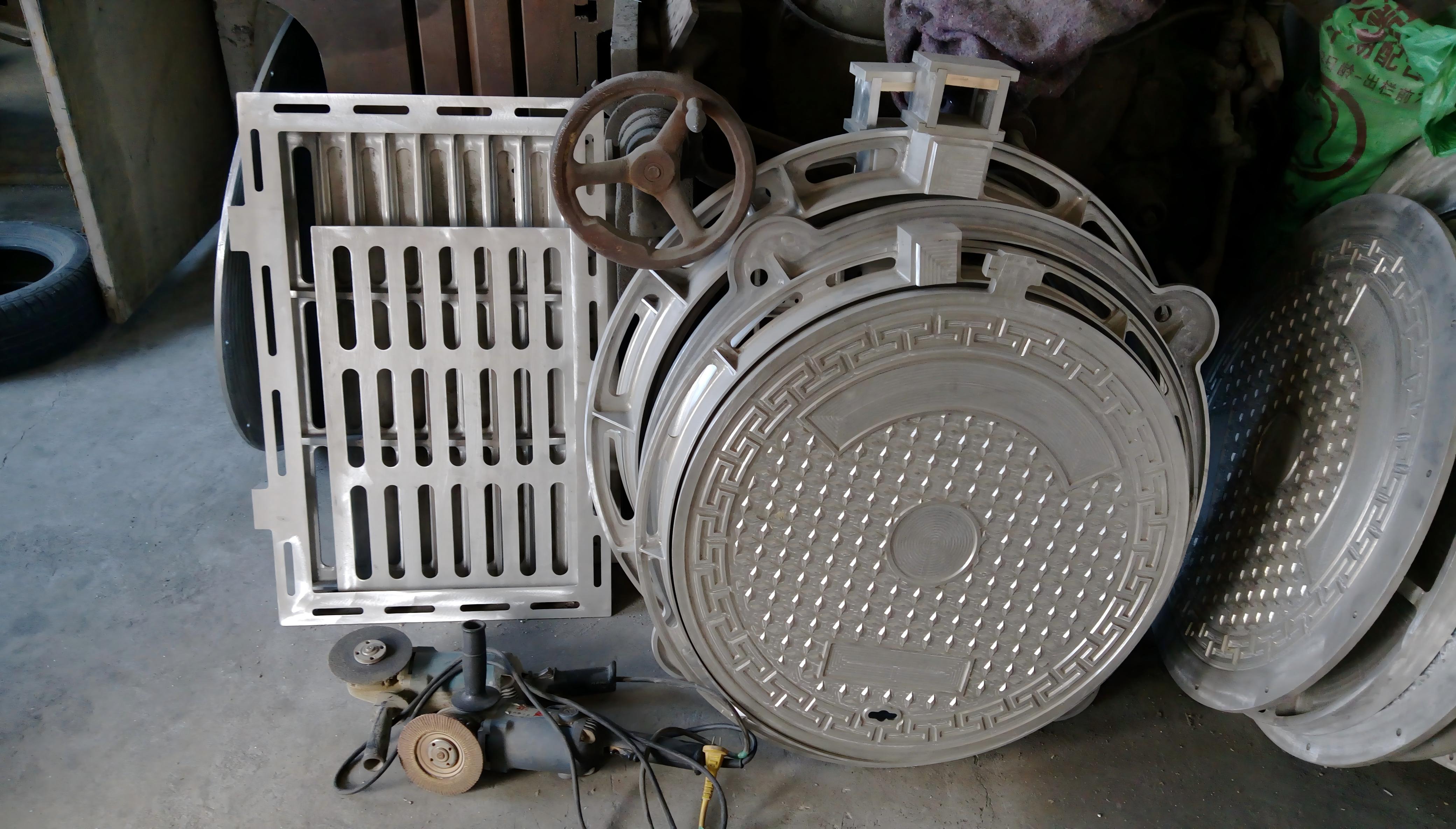

2. Mold Preparation: Defining the Design

Production starts with the mold, which determines the cover’s shape, pattern, reinforcement structure, and dimensions. This stage sets the foundation for everything that follows.

For project procurement, specification verification is equally important. Different opening sizes, usage scenarios, and load requirements call for different structural designs. The more precisely these are defined at the outset, the smoother production and installation will be. At Yantai Jinjiang, we always begin by confirming site dimensions, environmental conditions, and load class before matching them with suitable product specifications.

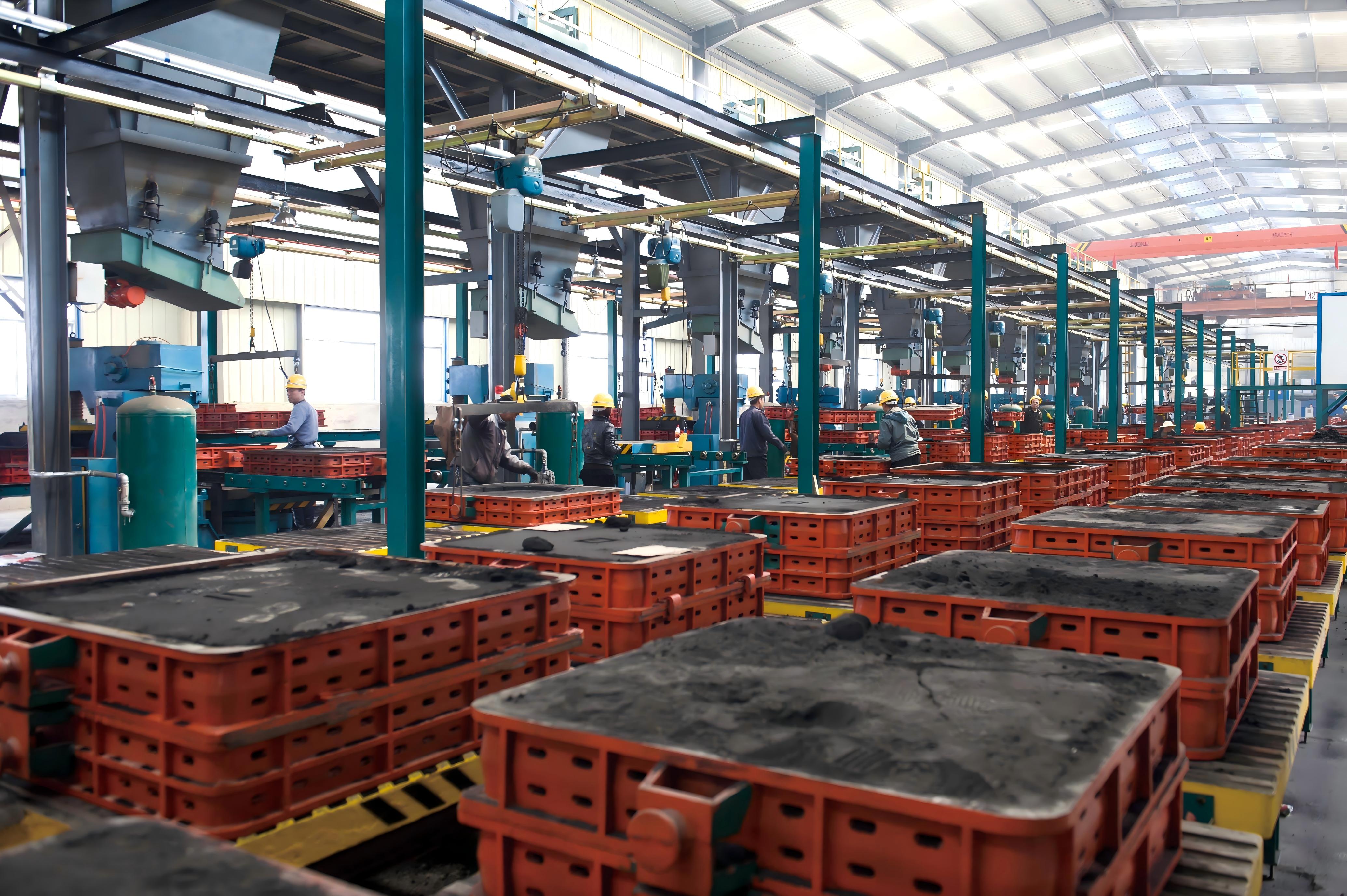

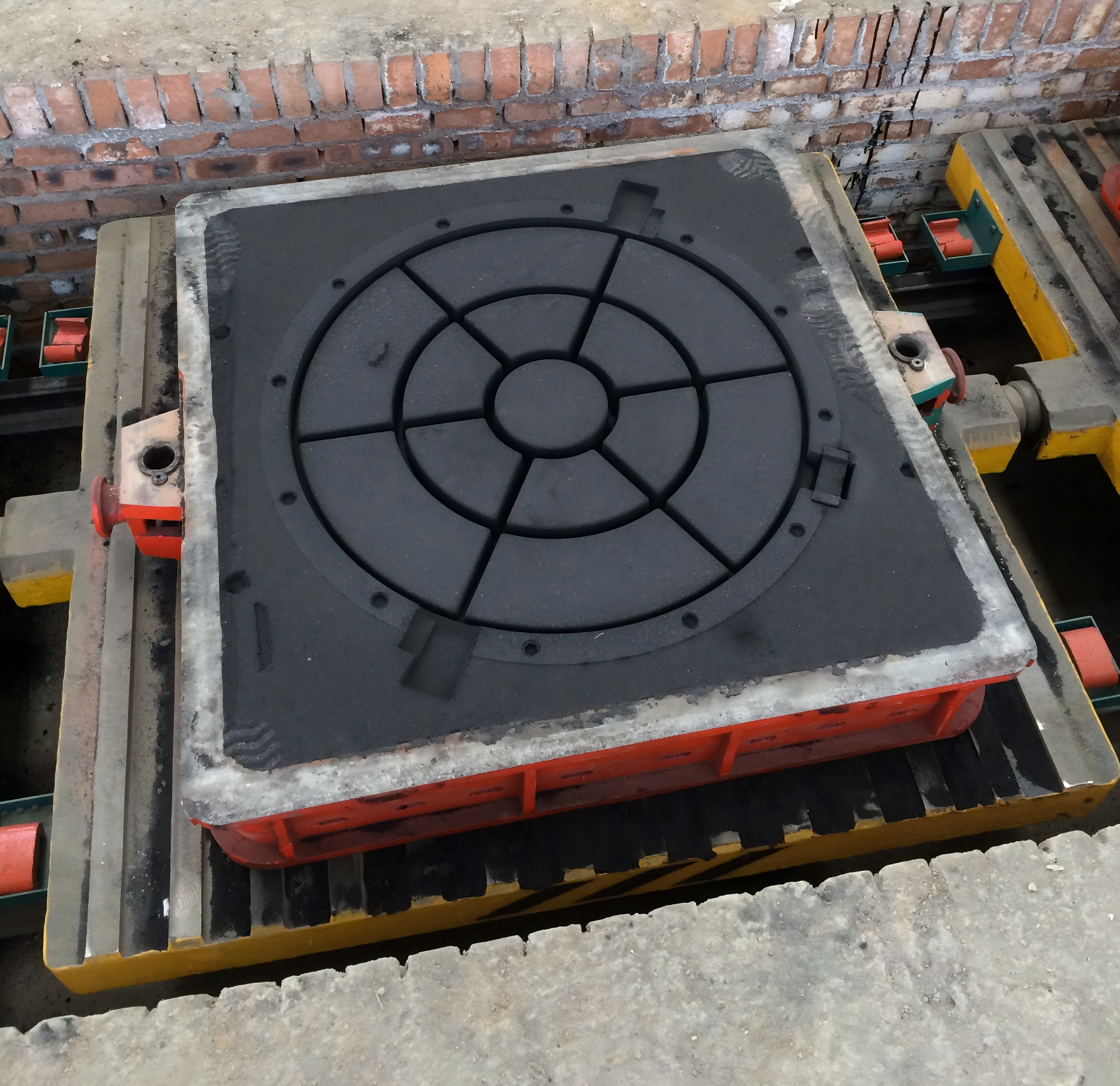

3. Sand Molding: Replicating the Mold Profile

Once the mold is ready, a sand mold is formed to create a cavity capable of withstanding high-temperature molten iron. This involves filling, compacting, and shaping the molding sand to achieve a stable and accurate impression.

While this step may appear straightforward, it directly affects the casting quality. Proper compaction and fine detailing ensure that the finished cover retains clear patterns and precise structural features. It is a fundamental but often underestimated part of the process.

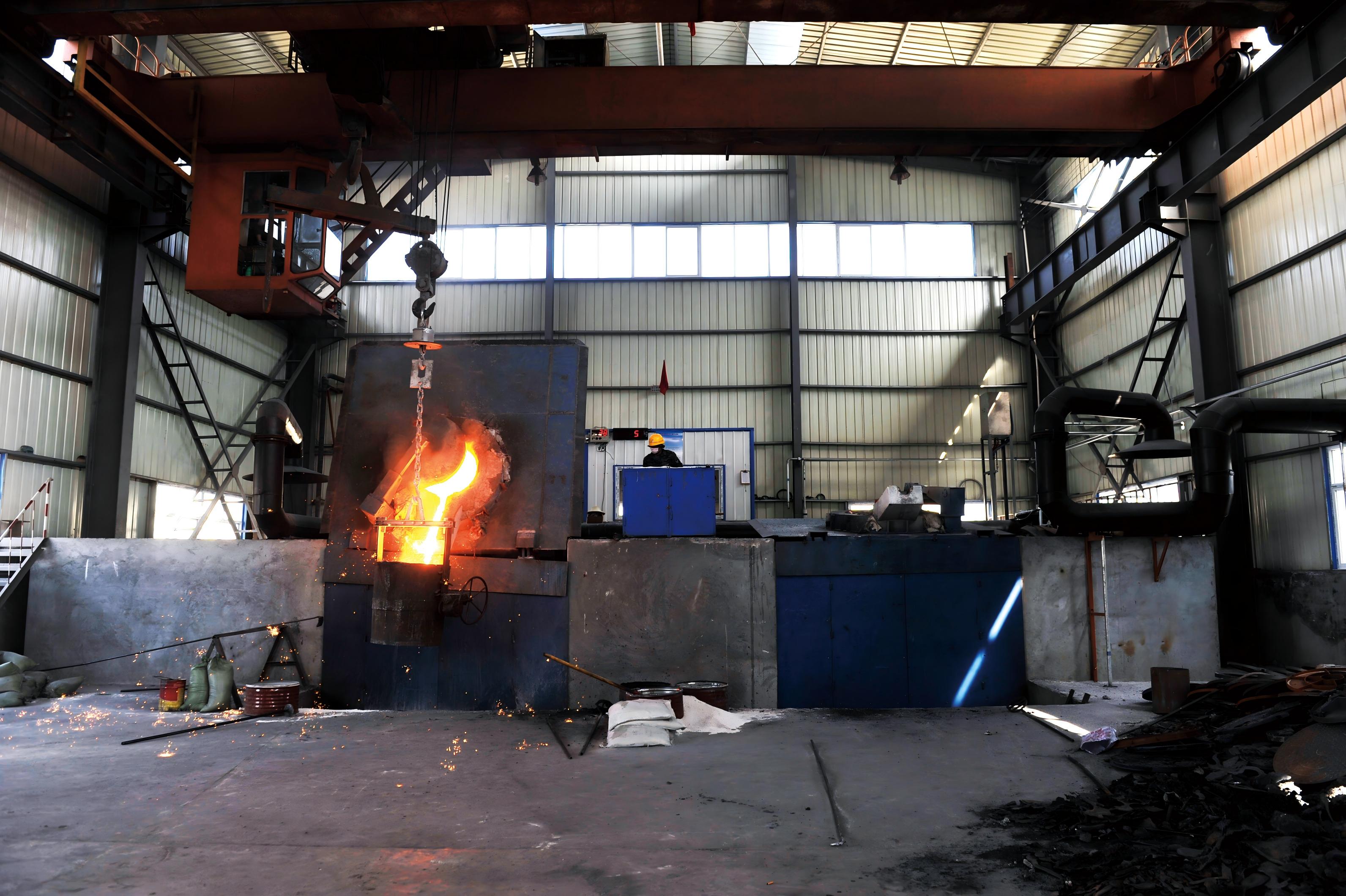

4. Melting: Transforming Raw Materials into Molten Iron

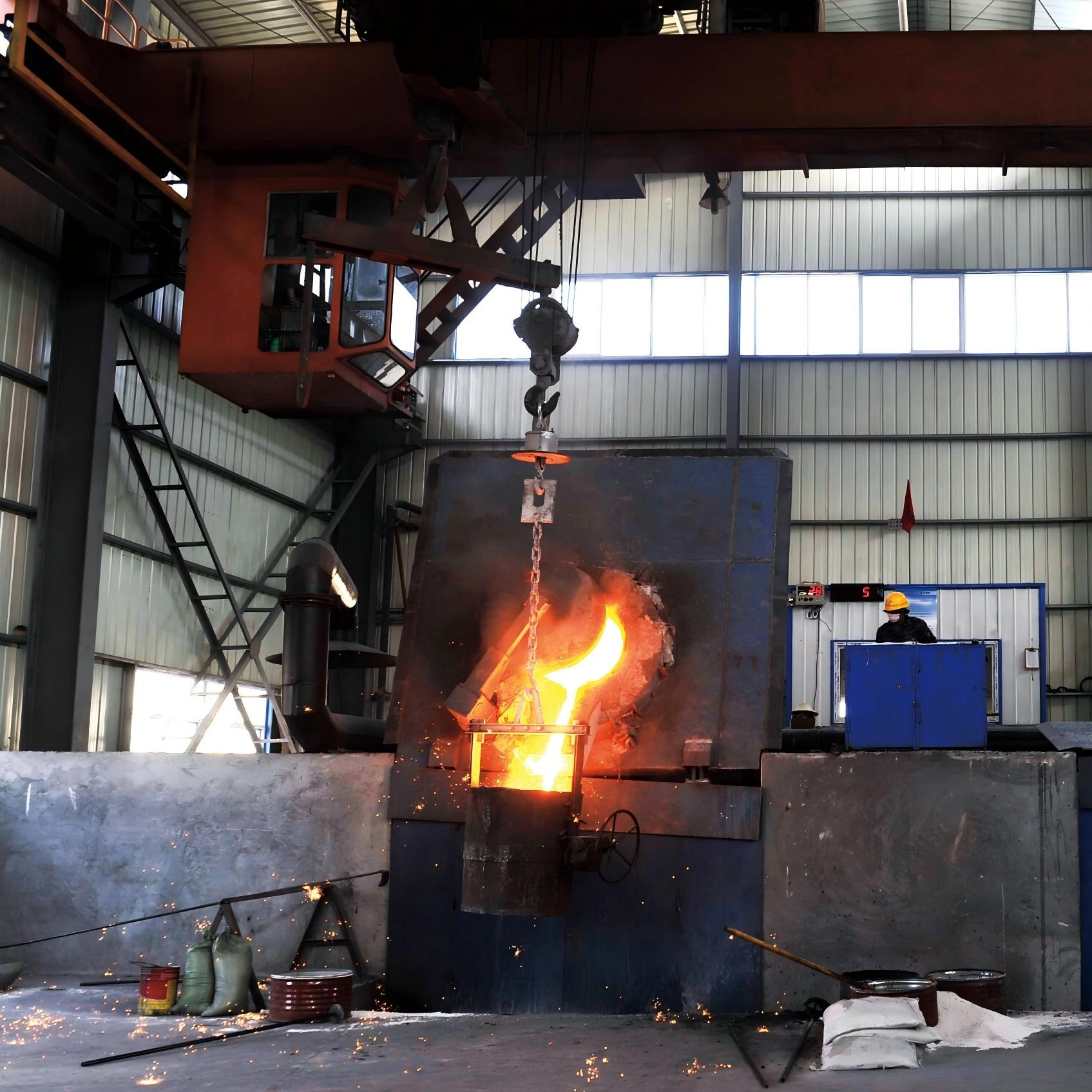

After the sand mold is prepared, the raw materials are melted in a furnace to produce the high-temperature molten iron required for casting.

The key here is to achieve the correct metallurgical condition. For cast products, material selection and melting control are essential to final strength and durability. When we work on engineering projects, we assess material composition, weight, and structural requirements based on the intended use—rather than focusing solely on price.

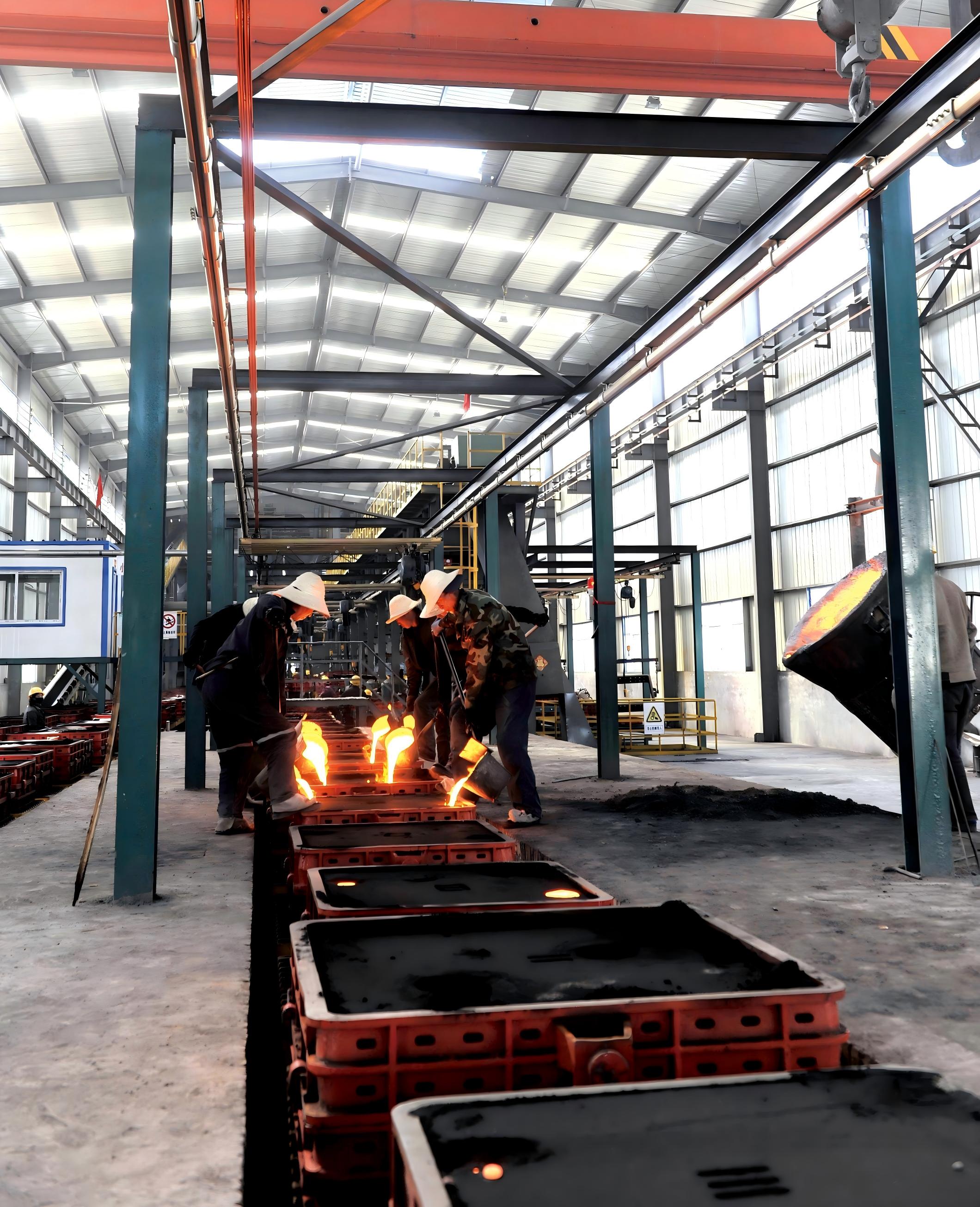

5. Pouring: The Cover Takes Shape

With the molten iron ready, the pouring stage begins. The liquid iron is carefully poured into the sand mold, filling the cavity to form the cover’s outline, reinforcing ribs, and surface pattern.

This is the most visually striking step in the process—what was once just a mold and molten metal now becomes a solid casting. For project teams, this reinforces why clear specifications upfront matter: load capacity, structure, and dimensions should be agreed upon well before production starts, saving time and avoiding costly rework.

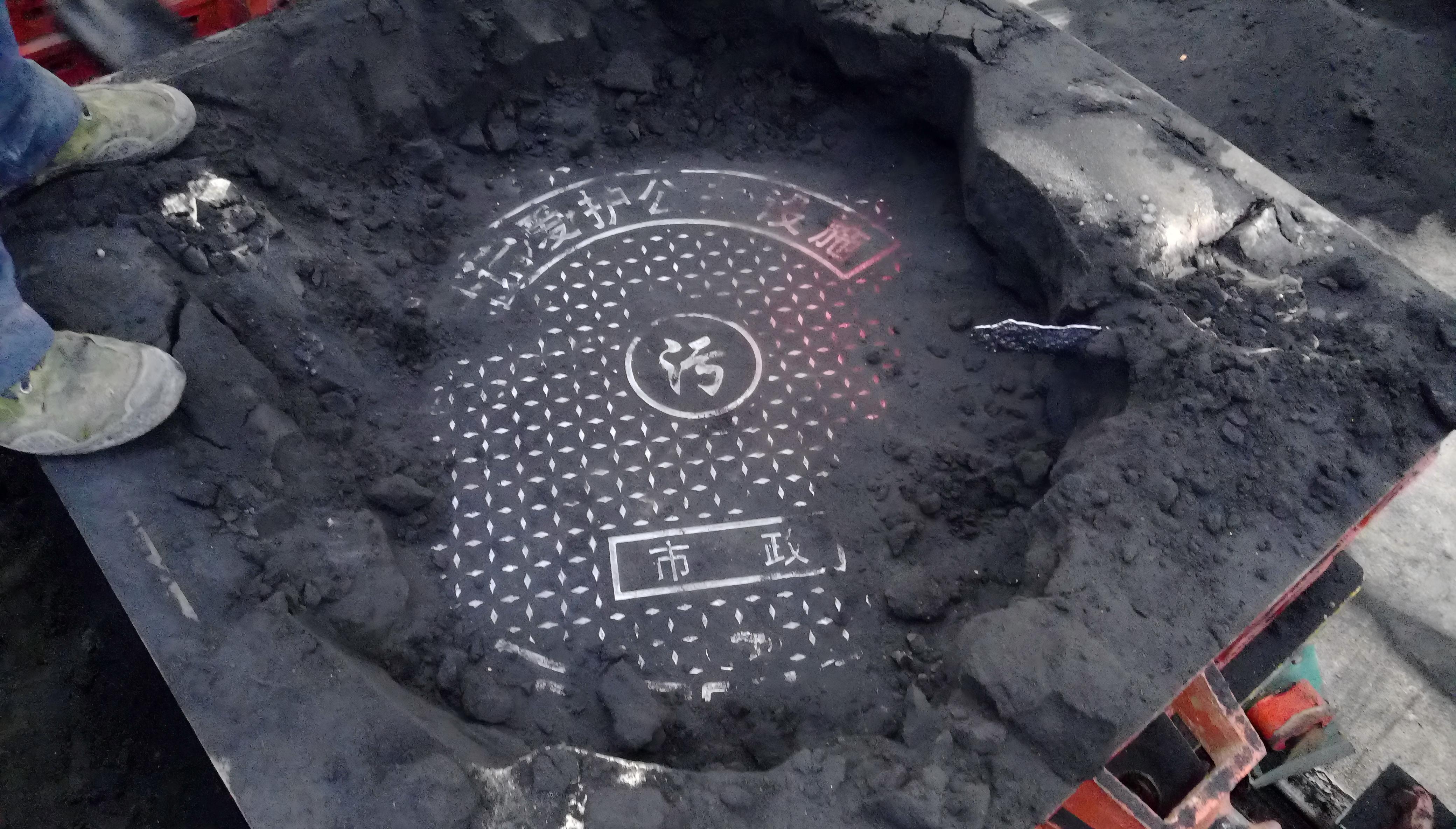

6. Cooling and Shakeout: Revealing the Casting

After pouring, the casting is left to cool and stabilize before being removed from the mold.

At this point, the raw casting is visible, but it is not yet ready for delivery. It still requires cleaning, finishing, and surface treatment before it meets the final product standard.

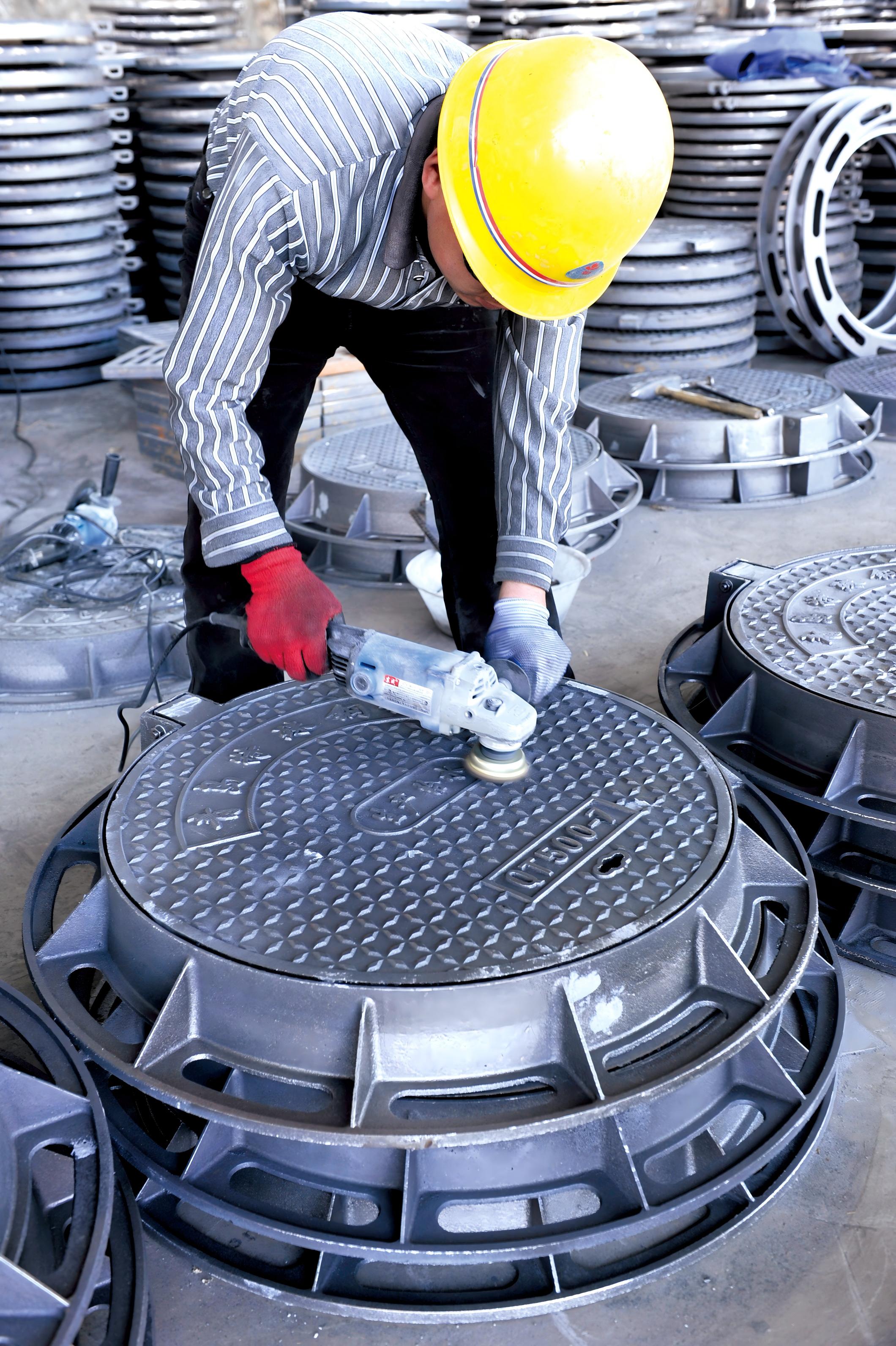

7. Cleaning and Surface Treatment: Refining the Product

Once the casting is shaken out, excess material (such as flash or burrs) is removed, and the surface is prepared for finishing. Depending on the project requirements, different surface treatments may be applied—for example, anti-corrosion coatings suitable for specific environments.

After coating, the product has a cleaner appearance and better resistance to corrosion, which also facilitates storage, transport, and long-term use. Yantai Jinjiang offers its own brand, “Jinzhijiang,” and holds ISO 9001 and EU CE certifications as part of our ongoing commitment to quality and service.

8. Final Inspection: Quality Check Before Delivery

Every cover undergoes a thorough inspection to verify dimensions, surface quality, and structural integrity.

For engineering procurement, ensuring that the cover matches the manhole opening size, environmental conditions, and project specifications is far more important than comparing prices alone.

That is why we place strong emphasis on pre-sales consultation—clarifying specifications and usage scenarios—and provide after-sales support for delivery and on-site issues. For standard products, we ship according to inventory and project schedules; for custom specifications, we coordinate based on project needs.

Only after passing inspection do products proceed to packaging, warehousing, and shipping—ultimately arriving at the job site. For project managers, product quality is just one part of the equation; smooth delivery and responsive support are equally critical to a positive procurement experience.

9. Behind Every Cover: A Complete Production System

From mold design and sand molding to melting, pouring, cooling, cleaning, and coating—a cast iron manhole cover is the result of a coordinated sequence of processes, not a single-step operation.

Although it may be a small component in municipal or site infrastructure, its correctness in specification, consistency in quality, and timeliness in delivery all affect on-site construction. Over years of supporting engineering projects, we have found that most issues arise not from product unavailability, but from unclear specifications defined too late in the process.

Therefore, when sourcing manhole covers, we recommend looking beyond price—and considering the product itself, the production process, and the supplier’s capability.

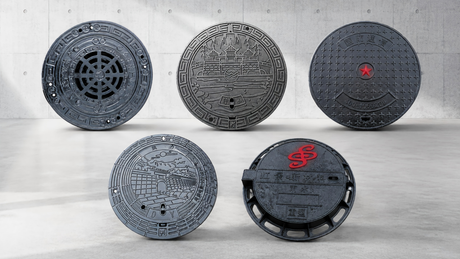

Yantai Jinjiang Building Materials Co., Ltd. has focused on manhole cover solutions for over 15 years. We offer both standard and custom products under our own brand, Jinzhijiang. If you are working on municipal roads, residential communities, parking lots, industrial sites, or stormwater/sewer networks—and already have opening sizes, load classes, or drawings—feel free to send us your requirements. We will start by verifying the specifications with you, and then discuss the right product.

                                                             Get the specs right first—then choose the right cover.
