Why Horizontal Static Pressure Molding Produces Better Ductile Iron Manhole Covers？

Views: 3512 Author: Site Editor Publish Time: 2026-09-21 Origin: Site

Inquire

Ductile iron manhole covers may look similar on the surface, yet their prices and performance can vary widely. For procurement teams and engineering contractors, this raises a common question: why do some manhole covers cost more, while still being preferred for high-standard municipal and key infrastructure projects?

The key difference is not only the raw material. It is also the manufacturing process. In today’s automated foundry systems, two mainstream processes are widely used: horizontal static pressure molding lines and vertical flaskless molding lines. Their process logic, product quality, and suitable applications differ significantly, which helps explain the gap between general-purpose covers and engineering-grade covers.

Vertical Molding Lines: Efficient, Cost-Effective, and Suitable for General Production

Vertical molding lines are a common production method for cost-effective manhole covers. Their main advantages are speed and production efficiency. This process uses vertical parting and flaskless shooting-squeeze molding, which eliminates the traditional sand box system. The equipment structure is relatively simple, the automated cycle is fast, and continuous large-volume production can be achieved. Equipment maintenance, labor, and time costs are generally lower.

However, this process also has inherent limitations. Vertical shooting-squeeze molding relies on instantaneous high-pressure sand shooting to compact the mold. The pressure distribution may not be fully uniform, and mold density can vary across different areas. This may lead to slight cavity displacement or insufficient surface flatness. In finished products, this can result in minor burrs, parting misalignment, or larger gaps between cover and frame. Overall precision, flatness, and structural consistency may be limited.

In addition, due to the vertical parting structure, the process is less flexible for complex core setting, chill placement, and other refined operations. It is generally less suitable for large-size, custom-shaped, or ultra-high-load manhole covers. It is mainly used for standardized, general-purpose covers for ordinary roads, residential communities, and similar routine applications.

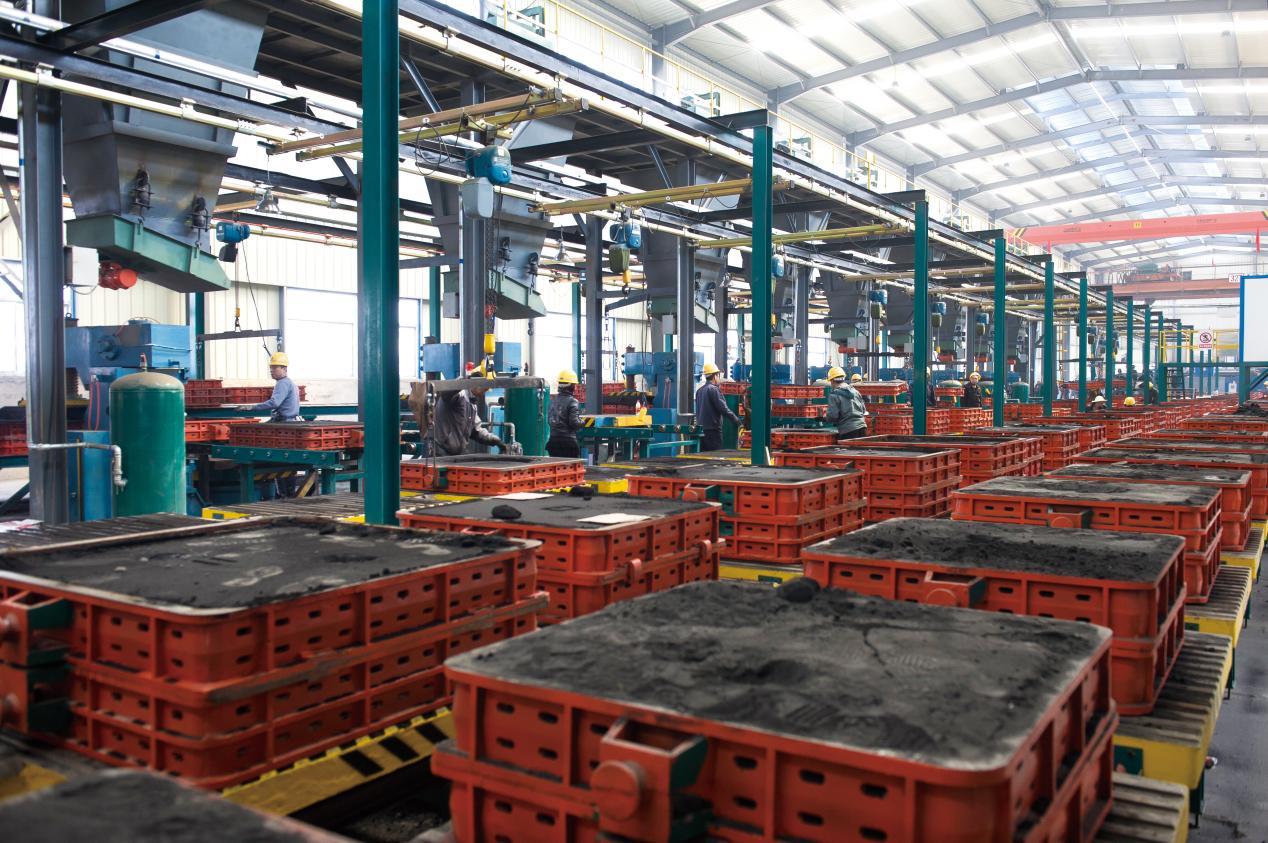

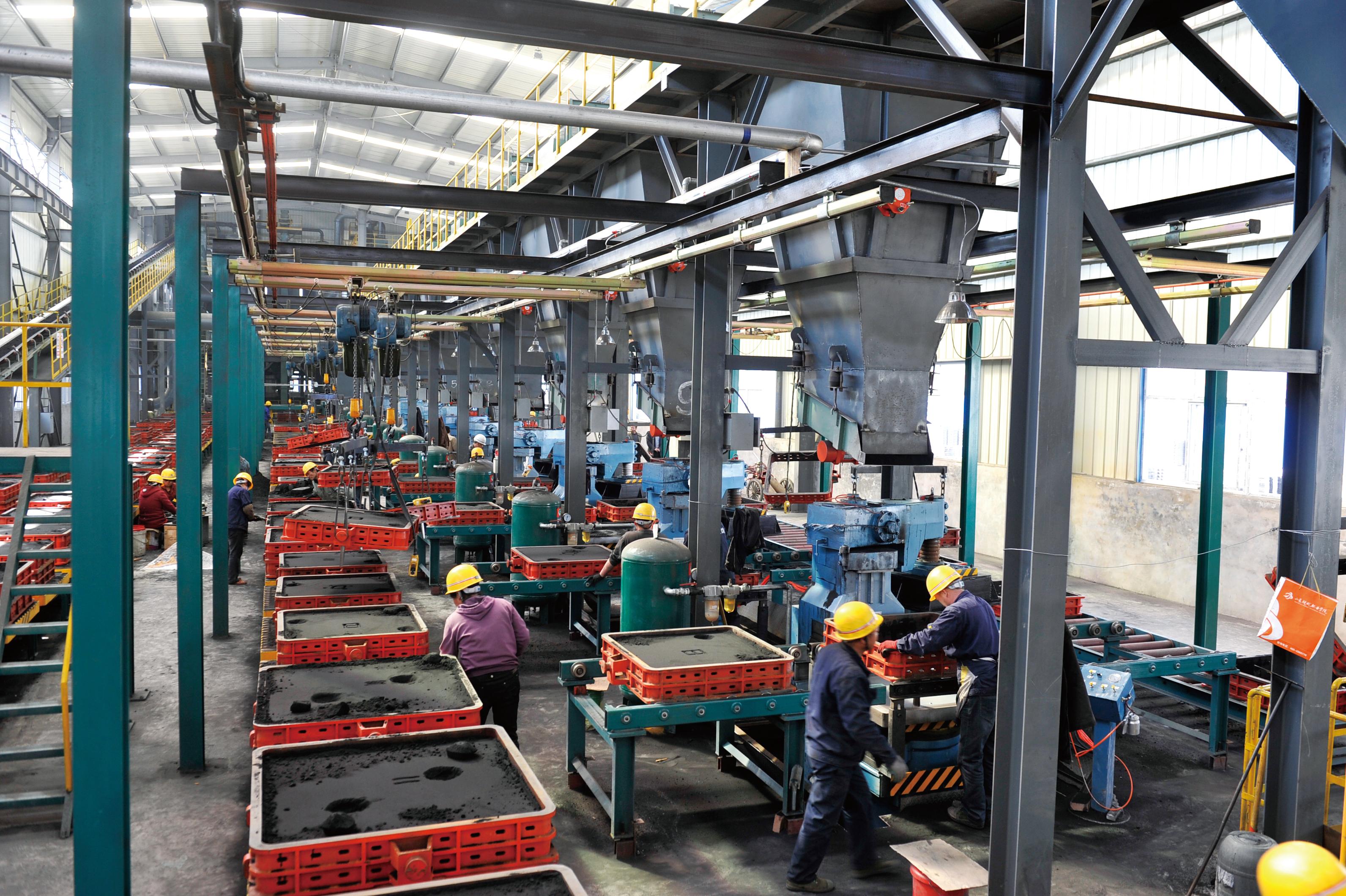

Horizontal Static Pressure Molding Lines: A Precision Process for Engineering-Grade Products

Horizontal static pressure molding is a high-end production process for manhole covers. Instead of vibration compaction or instantaneous shooting-squeeze molding, it adopts horizontal parting, flask-based static pressure compaction, and precision molding.

During production, air flow is first used for uniform pre-compaction of the sand mold. Then, a multi-head system applies balanced high pressure at multiple points to complete static pressure molding. The entire process runs without vibration or pressure deviation, helping the sand mold achieve uniform density and a compact structure from inside to outside.

This process provides several key advantages in finished products:

Accurate and controllable cavity dimensions

High flatness of the manhole cover

Tight fit between cover and frame

Reduced risk of mold shift, deformation, flash, or excessive gaps

Strong process compatibility for fine core setting and fixed chill placement

Ability to produce standard covers as well as large-size, custom-shaped, and high-load engineering covers

More uniform and compact metallographic structure

Improved resistance to rolling load, impact, and settlement

Better weather resistance and longer service life compared with ordinary process products

The main trade-off is higher equipment investment and production consumable costs. The production cycle is more stable but not designed for maximum-speed mass output. As a result, products made by this process are usually positioned at a higher price point and are often selected for high-standard municipal, key transportation, and large-scale infrastructure projects.

Yantai Jinjiang Building Materials Co., Ltd.: Focused on Process Quality

With 15 years of experience in the manhole cover industry, Yantai Jinjiang Building Materials Co., Ltd. understands how production processes affect engineering quality. Its high-end brand, Jinzhijiang Manhole Covers, mainly adopts horizontal static pressure precision molding for its core product lines, using process control as a foundation for product quality.

The company has its own independent production base covering 50 mu, with an annual output of up to 6,000 tons of ductile iron manhole covers and rainwater grates. This supports stable production capacity and reliable supply. The company has also been rated as an A-level taxpayer for several consecutive years, reflecting its standardized and reliable business operations.

In terms of technical quality, Jinzhijiang does not simply follow conventional process methods. It has independent product research and development patents and works to overcome common performance limitations in standard products. The company has also obtained ISO 9001 quality management system certification and EU CE certification. Its product quality is designed to meet stringent domestic engineering standards as well as international export requirements.

With reliable processes, stable quality, and comprehensive supporting services, Yantai Jinjiang Building Materials Co., Ltd. has long served municipal infrastructure projects and large listed company engineering projects. The company has successfully completed key projects such as the water supply network renovation in Peixian County, Xuzhou, Jiangsu; the overall road improvement in Zoucheng District, Jining, Shandong; and the road upgrade in Penglai, Shandong. It can provide one-stop customization and supporting solutions for manhole covers and rainwater grates for infrastructure, municipal, and commercial projects. With a focus on stable performance, high compatibility, and long service life, the company has earned recognition and long-term trust from engineering partners in various regions.
